The Honeywell Pro Series Thermostat is designed for reliable performance and easy operation, featuring a backlit display for clarity. This manual guides installers through setup, configuration, and advanced features to ensure optimal functionality.
1.1 Overview of the Honeywell Pro Series
The Honeywell Pro Series Thermostat offers advanced temperature control for various HVAC systems, including heat-only, 1 Heat/1 Cool, and 2 Heat/1 Cool heat pump configurations. Designed for ease of use, it features a UWP mounting system, backlit display, and compatibility with smart home systems, ensuring reliable performance and energy efficiency.
1.2 Key Features and Benefits
The Honeywell Pro Series Thermostat offers a backlit display for easy readability, UWP mounting system for straightforward installation, and compatibility with various HVAC systems. It supports heat-only, 1 Heat/1 Cool, and 2 Heat/1 Cool heat pump configurations. The thermostat also features Wi-Fi integration for smart home control, energy-saving modes, and scheduling options, ensuring efficient and convenient temperature management.
System Compatibility
The Honeywell Pro Series Thermostat supports various HVAC systems, including heat-only, 1 Heat/1 Cool, and 2 Heat/1 Cool heat pump configurations, offering versatile installation options.
2.1 Supported HVAC Systems
The Honeywell Pro Series Thermostat is compatible with a wide range of HVAC systems, including heat-only, 1 Heat/1 Cool, and 2 Heat/1 Cool heat pump configurations. It supports systems like TH1100DV for heat-only, TH2110DV/TH1110DV for 1 Heat/1 Cool, and TH2210DV/TH1210DV for heat pumps, ensuring versatile installation options for various home setups.
2.2 Heat Pump Compatibility
The Honeywell Pro Series Thermostat is fully compatible with 2 Heat/1 Cool heat pump systems, such as the TH2210DV/TH1210DV models. It ensures efficient operation by automatically controlling heating and cooling functions. Always verify compatibility with your specific heat pump system before installation to guarantee proper performance and avoid potential issues.
2.3 Heat Only and Cool Only Systems
The Honeywell Pro Series supports heat-only systems like the TH1100DV and cool-only configurations, ensuring precise temperature control. These models are designed for systems requiring single-function operation, providing reliable performance and compatibility with various HVAC setups. Always confirm system type before installation to ensure optimal functionality.
Pre-Installation Requirements
Before installation, gather necessary tools, ensure power is off, and review safety guidelines. Understand the thermostat package contents and system compatibility to ensure a smooth setup process.
3.1 Tools and Materials Needed

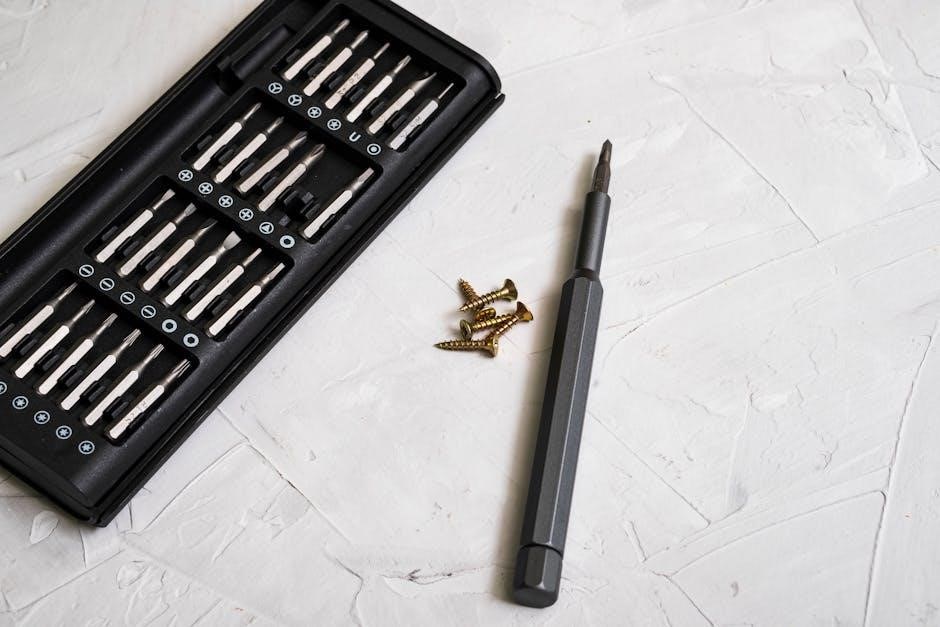

Ensure you have the following tools and materials: UWP Mounting System, wall anchors, screws, wire labels, and a screwdriver. Optional items include a cover plate for aesthetic purposes. Refer to the package contents and verify all components are included before starting the installation process.
3.2 Safety Precautions
Disconnect power at the circuit breaker before starting installation. Avoid touching live wires to prevent electrical shock. Ensure the system is de-energized; Handle components with care to prevent damage. Follow local electrical codes and regulations. Wear protective gear if necessary. Keep the area clear of clutter to avoid tripping hazards during the process.
3.3 Understanding the Thermostat Package
The Honeywell Pro Series Thermostat package includes the thermostat unit, UWP mounting system, wall anchors, screws, and installation manual. The UWP system ensures secure mounting without damaging the wall. Additional components like adapters may be provided for compatibility with various HVAC systems. Verify all items are included before starting installation to ensure a smooth process.
Mounting the Thermostat

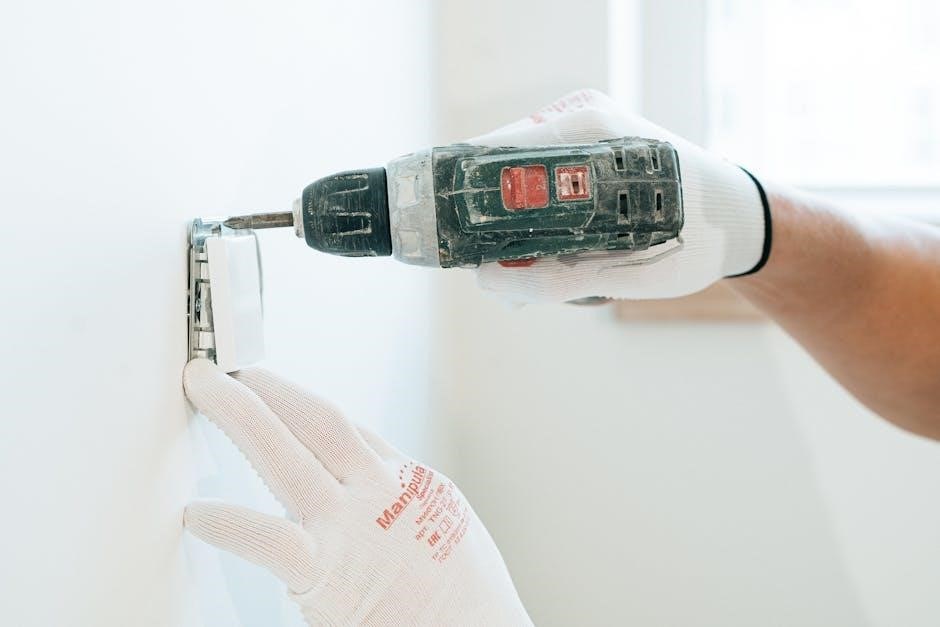

The Honeywell Pro Series Thermostat uses the UWP mounting system for secure installation. Align and snap the thermostat into place, ensuring proper fit and stability for optimal performance.
4.1 UWP Mounting System Overview
The Honeywell Pro Series Thermostat uses the UWP Mounting System for secure and straightforward installation. This system ensures proper alignment and fit, eliminating gaps. Simply push excess wires into the wall, close the UWP door, and align the thermostat with the wall anchors before securing it in place for a stable setup.
4.2 Aligning and Securing the Thermostat
Properly align the thermostat with the wall anchors. Gently push the device until it snaps securely into place, ensuring the UWP door closes without force. Verify alignment by checking the thermostat’s level and stability; Once secured, tug gently to confirm it is firmly attached to the wall, ensuring a stable installation.
4.3 Closing the UWP Door
After aligning the thermostat, gently push the UWP door until it clicks securely into place. Ensure no wires are pinched and the door closes smoothly without bulging. Verify the door is tightly shut to maintain proper installation and system functionality. Once closed, the thermostat is securely mounted and ready for wiring connections.
Wiring and Connections
This section covers wiring and connections for the Honeywell Pro Series Thermostat. Identify terminals, connect wires securely, and verify configurations for proper system operation and safety.
5.1 Identifying Wire Terminals
Identify wire terminals by their standard labels (R, W, Y, G, C, etc.). Ensure correct wire assignments to match system requirements. Consult the manual for specific terminal functions and compatibility. Proper identification prevents wiring errors and ensures safe, efficient thermostat operation. If unsure, refer to the installation guide or consult a professional for assistance.
5.2 Connecting Wires to the Thermostat
Connect wires to the thermostat by matching terminal labels (R, W, Y, G, C, etc.) to the corresponding ports. Ensure wires are securely inserted into terminals. Use the UWP mounting system to organize excess wires neatly. After connecting, close the UWP door and turn the power on at the breaker to test connectivity and functionality.
5.3 Common Wiring Configurations
Common wiring configurations depend on the HVAC system type. For heat-only systems, typical connections include R, W, and C terminals. Heat pump systems may require R, W, Y, and O/B terminals. Ensure wires are matched correctly to their respective terminals. Refer to the manual for specific configurations and verify connections before powering on the system.
Initial Setup and Configuration
Power on the thermostat, set the time and date, and navigate the menu system for basic configuration. Follow on-screen prompts to complete initial setup efficiently.
6.1 Powering On the Thermostat
After installation, switch the power on at the breaker or switch. The thermostat will initialize, displaying settings. Check for a backlit screen and ensure all buttons respond. Verify proper functionality by testing basic operations. Refer to the manual for troubleshooting power-related issues or display malfunctions.
6.2 Setting Time and Date
Press the Menu button on the thermostat. Use the up and down arrows to navigate to the Time and Date settings. Select the correct time format (12/24-hour) and adjust the time, date, and day of the week as needed. Save your changes to ensure the thermostat operates on the correct schedule.
6.3 Navigating the Menu System
Press the Menu button to access the thermostat’s settings. Use the up and down arrows to scroll through options like temperature, schedule, and system settings. Select an option by pressing the Select button. Adjust settings using the arrows and press Done to save changes. Exit the menu by pressing Menu again to return to the home screen.
Installer Setup Options
Access installer settings through the menu for advanced configurations. Set system parameters, changeover values, and other specialized options to optimize thermostat performance for specific HVAC setups.
7.1 Accessing Installer Settings
Press the Menu button to access the installer settings. Use the arrow keys to navigate to Installer Settings and press Select. This menu allows configuration of advanced system parameters, including changeover values and temperature limits. Refer to the display for specific options, such as ALRT for alerts and SNZE for snooze functionality.
7.2 Configuring System Settings
Use the arrow keys to navigate to the desired system setting and press Select. Configure parameters like temperature limits, heat/cool differentials, and changeover settings. Adjust fan settings and ensure proper system operation. Refer to the display for specific configuration options, such as Function 12 for system settings, ensuring optimal performance and energy efficiency.
7.3 Setting Changeover Parameters
Navigate to the installer settings menu and select the changeover parameters option. Use the arrow keys to adjust the heat pump changeover temperature and differential. Ensure the settings align with your HVAC system requirements for optimal performance. Proper configuration prevents unnecessary cycling and maintains consistent indoor comfort while maximizing energy efficiency.
Advanced Features
The Honeywell Pro Series offers Wi-Fi connectivity, smart home integration, scheduling, and energy-saving modes. Remote access via the Honeywell Home app allows precise temperature control and system monitoring.
8.1 Wi-Fi Setup and Smart Home Integration
Connect your Honeywell Pro Series Thermostat to Wi-Fi by downloading the Honeywell Home app. Follow in-app instructions to link your thermostat to your smart home system. Compatible with Amazon Alexa and Google Assistant, enabling voice control and seamless integration. Remote monitoring and adjustments ensure efficient energy management and enhanced home comfort through smart devices.
8.2 Scheduling and Energy Saving Modes
The Honeywell Pro Series Thermostat offers flexible scheduling options, allowing you to create custom temperature settings for different times of the day. Energy-saving modes optimize heating and cooling by adjusting temperatures during unoccupied periods. Features like geofencing and smart recovery ensure efficient energy use while maintaining comfort. These modes help reduce energy consumption without sacrificing performance.
8.3 Remote Access and Control
The Honeywell Pro Series Thermostat supports remote access through the Honeywell Home app, enabling users to adjust settings, monitor conditions, and receive notifications via smartphone. Geofencing and voice control integration enhance convenience, while remote diagnostics ensure optimal performance. This feature allows seamless management of your home’s climate from anywhere, improving comfort and efficiency.
Troubleshooting Common Issues
Troubleshoot common issues like display accuracy, wiring problems, or connectivity by checking connections, ensuring proper calibration, and verifying power supply. Use the Honeywell Home app for remote diagnostics.
9.1 Display Accuracy and Calibration
The Honeywell Pro Series Thermostat may display temperatures up to 3°F lower or higher than actual. For calibration, press Menu, navigate to Installer Settings, and adjust the temperature offset. Ensure proper mounting and check for obstructions or environmental factors affecting accuracy. Use the Honeywell Home app to verify settings and ensure optimal performance.
9.2 Troubleshooting Wiring Issues
Check for loose connections or incorrect wire assignments. Verify wiring matches the terminal labels on the thermostat and HVAC system. Ensure power is off at the breaker before inspecting. Use a multimeter to test for short circuits or open wires. Refer to the wiring diagram in the manual for proper configuration and connections.
9.3 Resolving Power and Connectivity Problems
Check if the thermostat has power by ensuring the breaker is on. Verify all wiring connections are secure. Reset the thermostat by removing batteries or switching off power. For connectivity issues, ensure Wi-Fi is enabled and the network password is correct; Restart the router and thermostat. Use the Honeywell Home app to diagnose and resolve connection problems.
Maintenance and Upkeep
Regularly clean the thermostat to ensure accuracy. Update software and firmware for optimal performance. Replace batteries if applicable to maintain functionality and avoid power-related issues.
10.1 Cleaning the Thermostat
Regularly clean the thermostat with a soft, dry cloth to remove dust and debris. For stubborn marks, dampen the cloth with water, but avoid harsh chemicals or excessive moisture. Ensure the device is powered off before cleaning. Gently wipe the display and casing to maintain clarity and prevent interference with temperature sensors.
10.2 Updating Software and Firmware
Access the thermostat menu to check for software updates. Ensure it’s connected to Wi-Fi for Over-the-Air (OTA) updates. Download the latest firmware version and install it. Avoid interrupting the update process to prevent issues. After installation, restart the thermostat to apply changes and ensure optimal performance and functionality. Regular updates maintain security.
10.3 Battery Replacement (If Applicable)
Turn off power at the breaker. Remove the thermostat from the wall plate if necessary. Locate the battery compartment, typically on the front or side. Open it, remove the old battery, and insert the new one, ensuring correct polarity. Replace the compartment, restore power, and test the thermostat.
The Honeywell Pro Series Thermostat is now successfully installed, offering ease of use and energy efficiency. For further assistance, refer to the Honeywell Home app and support resources for any questions or concerns.
11.1 Final Check and Verification
Ensure the thermostat is properly mounted and powered on. Verify the display accuracy, button responsiveness, and system operation; Check wiring connections and confirm all features, including Wi-Fi and scheduling, function correctly. Review the installation steps to ensure no errors were made. Refer to the Honeywell Home app for additional support and troubleshooting.
11.2 Ensuring Proper Operation
After installation, test the system’s response to temperature adjustments. Confirm that heating, cooling, and scheduling features function as intended. Ensure smooth transitions between modes and verify that all settings align with your preferences. Regularly review and adjust configurations as needed to maintain optimal performance and prevent potential issues. Refer to the Honeywell Home app for remote monitoring and additional support.
Additional Resources
Visit Honeywell Home’s official website for user manuals, troubleshooting guides, and customer support. Download the Honeywell Home app for remote thermostat management and additional resources.
12.1 Honeywell Home App and Support
The Honeywell Home app offers remote thermostat management, scheduling, and energy monitoring. It provides troubleshooting guides, technical support, and how-to resources. Download from the App Store or Google Play for iOS and Android devices. The app enhances thermostat performance and energy efficiency, ensuring a seamless smart home experience with dedicated customer support.
12.2 Online Manuals and Documentation
Honeywell provides extensive online resources, including user manuals, installation guides, and technical documentation for the Pro Series thermostat. These materials are available in PDF format and cover topics like wiring, system compatibility, and advanced features. Visit the official Honeywell website to access these resources, ensuring proper installation and optimal performance of your thermostat.
12.3 Customer Service and Technical Support
Honeywell offers comprehensive customer service and technical support for the Pro Series thermostat. Users can access assistance via phone, email, or live chat. The official Honeywell website provides detailed support resources, including troubleshooting guides and FAQs. For personalized help, visit support.honeywellhome.com. The support team is available 24/7 to address installation, operation, and software update queries.
